A semaphore in OS is a synchronization tool used to control access to shared resources in a multitasking environment. It helps operating systems manage multiple processes or threads that need to access the same resource without causing conflicts or incorrect results.
Semaphores are important in process synchronization because modern operating systems run many processes simultaneously. Without proper synchronization, processes may interfere with each other while accessing shared data, leading to issues like data inconsistency and system instability. Semaphores help coordinate processes and ensure safe execution.
Semaphores are widely used in operating systems for tasks such as process synchronization, resource sharing, multithreading, and solving synchronization problems like producer-consumer scenarios.
In this blog, you will learn what a semaphore in OS is, understand its types and operations, see a simple example, explore its advantages and limitations, and understand how semaphores help manage shared resources efficiently.

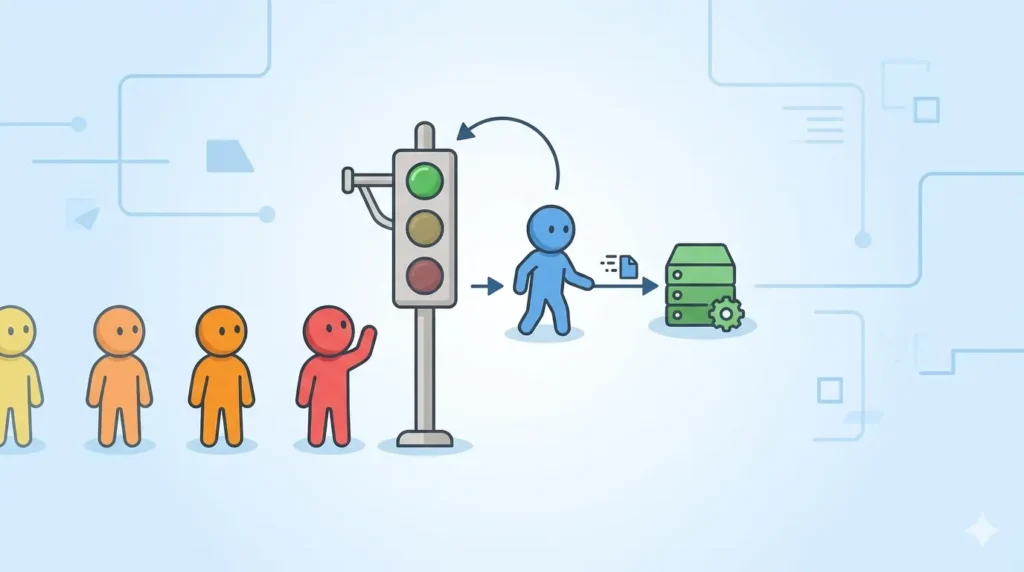

What is Semaphore in OS?
A semaphore in OS is a synchronization mechanism used to control access to shared resources by multiple processes or threads.
In simple words, a semaphore acts like a signaling system that tells processes whether a resource is available or not. It helps processes coordinate with each other so that shared data is accessed safely and conflicts are avoided.
The main purpose of a semaphore is to ensure proper process synchronization and prevent multiple processes from accessing critical resources simultaneously. This helps maintain data consistency, improve system stability, and manage resource sharing efficiently in an operating system.
Need for Semaphore
Semaphores are needed in operating systems to manage multiple processes that run simultaneously and access shared resources.
Why Synchronization is Necessary
In multitasking systems, several processes or threads may execute at the same time. If they access shared resources like memory, variables, or files without coordination, conflicts can occur. Synchronization ensures that processes execute in a controlled manner and use shared resources safely.
Problems Caused Without Synchronization
Without proper synchronization, processes may interfere with each other while modifying shared data. This can lead to incorrect outputs, data inconsistency, unexpected behavior, and system instability. In severe cases, it may also cause issues like race conditions or deadlocks.
Managing Shared Resources Safely
Semaphores help manage shared resources by controlling how many processes can access a resource at a time. They ensure that processes wait when a resource is unavailable and proceed only when it becomes free, helping maintain correct and reliable execution.
Types of Semaphore
Semaphores are mainly divided into two types: Binary Semaphore and Counting Semaphore. Both are used for process synchronization, but they work differently depending on how resources need to be managed.
Binary Semaphore
A binary semaphore is a semaphore that can have only two values: 0 and 1. It works similarly to a lock mechanism and is mainly used when only one process should access a shared resource at a time.
- Value 1 means the resource is available
- Value 0 means the resource is currently being used
When a process wants to access a shared resource, it checks the semaphore value:
- If the value is 1, the process enters the critical section and the value becomes 0
- If the value is 0, other processes must wait until the resource becomes free again
Because it allows only one process at a time, a binary semaphore is often used to achieve mutual exclusion and prevent conflicts between processes.
Example of Binary Semaphore
Suppose two processes want to access the same printer:
- Initially, semaphore = 1 (printer available)
- Process A starts using the printer → semaphore becomes 0
- Process B tries to access the printer but must wait
- After Process A finishes, semaphore becomes 1 again
- Now Process B can use the printer
This ensures that both processes do not use the printer simultaneously.
Counting Semaphore
A counting semaphore can have multiple integer values instead of just 0 and 1. It is used when several instances of a resource are available and multiple processes are allowed limited access at the same time.
The semaphore value represents the number of available resources:
- If the value is positive, processes can access the resource
- If the value becomes 0, no more resources are available and incoming processes must wait
Counting semaphores are useful for managing resource pools such as:
- Multiple printers
- Database connections
- Memory blocks
- Network resources
Example of Counting Semaphore
Assume a system has 3 printers:
- Initial semaphore value = 3
- Three different processes can use the printers simultaneously
- Each time a process uses a printer, the semaphore value decreases by 1
- When all printers are occupied, semaphore becomes 0
- Any additional process must wait until a printer becomes free
This allows controlled access to shared resources without conflicts.
Difference Between Binary and Counting Semaphore
| Binary Semaphore | Counting Semaphore |
|---|---|
| Uses only two values (0 and 1) | Uses multiple integer values |
| Allows only one process at a time | Allows limited multiple processes |
| Works like a lock or mutex | Works like a resource counter |
| Used for mutual exclusion | Used for managing multiple resources |
Both types of semaphores play an important role in operating systems by ensuring safe and synchronized access to shared resources.
Operations on Semaphore
Semaphores mainly use two basic operations to control access to shared resources: Wait Operation (P) and Signal Operation (V). These operations help synchronize processes and ensure safe resource management.
Wait Operation (P)
The Wait operation, also called P operation, is used when a process wants to access a shared resource.
This operation decreases the semaphore value by 1:
- If the semaphore value is greater than 0, the process is allowed to continue and use the resource
- If the semaphore value becomes 0 or negative, the process must wait until the resource becomes available
In simple terms, the wait operation checks whether a resource is free. If the resource is already being used, the process is blocked and placed in a waiting state.
Example
Assume a semaphore value is 1:
- Process A performs the wait operation
- Semaphore value becomes 0
- Process A enters the critical section
Now if Process B tries to access the same resource:
- It performs the wait operation
- Since the semaphore value is already 0, Process B must wait until the resource is released
This prevents multiple processes from accessing the resource simultaneously.
Signal Operation (V)
The Signal operation, also called V operation, is used when a process finishes using a shared resource.
This operation increases the semaphore value by 1:
- It indicates that the resource has become available again
- Waiting processes can now access the resource
In simple words, the signal operation releases the resource and allows other blocked processes to continue execution.
Example
Continuing the previous example:
- Process A completes its task
- It performs the signal operation
- Semaphore value increases from 0 to 1
Now the waiting Process B can access the resource and continue execution.
Importance of Wait and Signal Operations
Together, wait and signal operations help:
- Maintain proper synchronization between processes
- Prevent conflicts while accessing shared data
- Ensure controlled access to critical resources
- Avoid data inconsistency and execution errors
These operations form the foundation of semaphore-based synchronization in operating systems.
Example of Semaphore in OS
To understand how a semaphore in OS works, consider an example where two processes try to access the same shared resource.
Shared Resource Example
Assume there is a shared variable:counter = 0
Two processes, Process A and Process B, want to update this variable. To prevent conflicts, the operating system uses a semaphore.
Initial semaphore value:S = 1
This means the shared resource is available for one process at a time.
Two Processes Accessing Same Data
Step 1: Process A Requests Access
Process A performs the Wait (P) operation:
- Semaphore value changes from 1 to 0
- Process A enters the critical section and starts modifying the shared variable
Now the resource is locked for other processes.
Step 2: Process B Requests Access
While Process A is still using the resource, Process B also tries to access it.
Process B performs the Wait (P) operation:
- Since the semaphore value is already 0, Process B cannot enter the critical section
- Process B is placed in the waiting state
Step 3: Process A Finishes Execution
After completing its task, Process A performs the Signal (V) operation:
- Semaphore value increases from 0 to 1
- The resource becomes available again
Step 4: Process B Gets Access
Now Process B can enter the critical section and safely access the shared variable.
How Semaphore Controls Access
The semaphore ensures that only one process accesses the shared resource at a time. If a resource is already in use, other processes must wait until it becomes available.
This controlled access:
- Prevents conflicts between processes
- Maintains data consistency
- Ensures proper synchronization
- Avoids incorrect results caused by simultaneous access
In this way, semaphores help operating systems manage shared resources safely and efficiently.

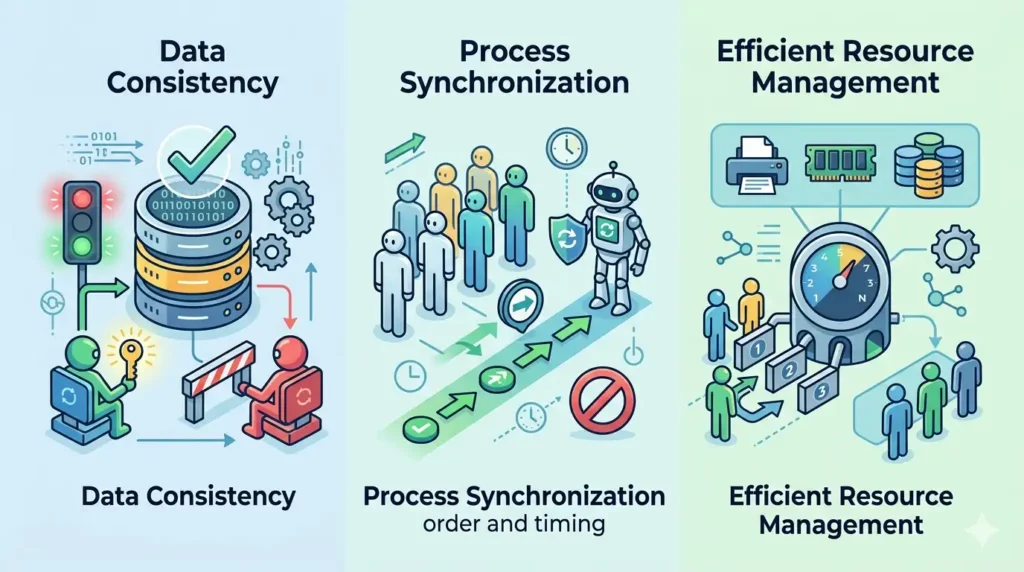

Advantages of Semaphore
Prevents Data Inconsistency
Semaphores control access to shared resources and ensure that only authorized processes access them at the correct time. This prevents multiple processes from modifying the same data simultaneously, helping maintain accurate and consistent results.
Ensures Process Synchronization
Semaphores help coordinate multiple processes or threads running in a system. They make sure processes execute in a proper order and avoid conflicts while accessing shared resources, which improves overall system stability.
Efficient Resource Management
Semaphores manage resource allocation efficiently by controlling how many processes can access a resource at a time. This helps the operating system utilize resources properly and reduces unnecessary conflicts between processes.
Disadvantages / Limitations
Complex Implementation
Using semaphores correctly can be difficult because developers must carefully manage wait and signal operations. Incorrect implementation may lead to synchronization issues and system errors.
Possibility of Deadlock
Improper use of semaphores can cause deadlocks, where processes keep waiting indefinitely for resources held by each other. This can stop system execution and reduce performance.
Difficult Debugging
Semaphore-related issues are often hard to detect and debug because synchronization problems may occur only under specific execution conditions. Errors caused by improper synchronization can be unpredictable and difficult to reproduce.
Difference Between Semaphore and Mutex
Semaphore and mutex are both synchronization tools used in operating systems, but they work differently and are used for different purposes.
| Aspect | Semaphore | Mutex |
|---|---|---|
| Ownership | A semaphore does not have ownership. Any process can signal or release it. | A mutex has ownership. Only the process that locks it can unlock it. |
| Resource Access | A semaphore can allow one or multiple processes to access a resource depending on its type. | A mutex allows only one process or thread to access a resource at a time. |
| Usage Purpose | Mainly used for process synchronization and managing multiple resources. | Mainly used for mutual exclusion to protect critical sections. |
| Values | Can have multiple integer values (counting semaphore) or 0 and 1 (binary semaphore). | Typically works with only two states: locked or unlocked. |
| Complexity | More flexible but slightly more complex. | Simpler and easier to manage for single-resource protection. |
In simple terms, a mutex is mainly used like a lock for exclusive access, while a semaphore is used for broader synchronization and resource management between processes.
Applications of Semaphore
Semaphores are widely used in operating systems to manage synchronization and control access to shared resources. Some important applications are:
Process Synchronization
Semaphores help coordinate multiple processes running simultaneously in a system. They ensure that processes execute in a proper sequence and avoid conflicts while accessing shared resources. This maintains data consistency and smooth system operation.
Producer-Consumer Problem
Semaphores are commonly used to solve the producer-consumer problem, where one process produces data and another consumes it. Semaphores control access to the shared buffer, ensuring that producers do not add data when the buffer is full and consumers do not remove data when the buffer is empty.
Resource Sharing
In systems where multiple processes need access to limited resources such as printers, files, or database connections, semaphores manage resource allocation efficiently. They control how many processes can use a resource at the same time and prevent conflicts.
Multithreading Environments
Semaphores are widely used in multithreaded applications to synchronize threads and protect shared data. They help threads communicate and coordinate safely, reducing the chances of synchronization errors and inconsistent results.
FAQs
Q1. What is semaphore in OS in simple words?
A semaphore in OS is a synchronization tool used to control access to shared resources by multiple processes or threads. It helps processes coordinate with each other and prevents conflicts while accessing shared data.
Q2. What are the types of semaphore?
There are two main types of semaphores:
- Binary Semaphore – works with only two values (0 and 1) and allows one process at a time
- Counting Semaphore – uses multiple integer values and allows limited multiple accesses to resources
Q3. What is wait and signal operation?
The Wait (P) operation decreases the semaphore value and may block a process if the resource is unavailable.
The Signal (V) operation increases the semaphore value and releases the resource so other waiting processes can access it.
Q4. Why semaphore is used in OS?
Semaphores are used in operating systems to achieve process synchronization, manage shared resources safely, and prevent issues like data inconsistency and conflicts between processes.
Q5. What is the difference between semaphore and mutex?
A semaphore can allow one or multiple processes to access a resource and does not have ownership restrictions. A mutex works like a lock, allowing only one process at a time, and only the process that locked it can unlock it.
Conclusion
A semaphore in OS is an important synchronization mechanism used to control access to shared resources in multitasking systems. It helps processes coordinate with each other and ensures safe execution of shared operations.
By managing resource access properly, semaphores prevent conflicts between processes and maintain data consistency. They are widely used in process synchronization, resource sharing, and multithreading environments.
Understanding semaphores and their operations is essential for building reliable and efficient operating systems and applications.
